Insulated Brick Façade Panels: application features and installation details
As far as you know, the façade has a protective and decorative functions. The process of exterior walls insulating and mounting of the finish facade always takes time and big money. Need to use not cheap materials such as insulation, facing panels, siding or bricks, and in addition, wapor- and water barrier wraps.
However, today we have a material that combines the best properties of clinker tiles and polyurethane or styrofoam insulation. We are talking about Insulated Brick Façade Panels.
This energy-saving-system, will help meet almost all requirements of the latest energy conservation regulations and you may achieve heating cost savings of up to 30% in a detached house.
The Insulated Brick Façade Panels makes it possible to face the walls of old, prefabricated and new buildings cleanly, easily and economically with the additional effect of thermal-insulation.
However, today we have a material that combines the best properties of clinker tiles and polyurethane or styrofoam insulation. We are talking about Insulated Brick Façade Panels.
This energy-saving-system, will help meet almost all requirements of the latest energy conservation regulations and you may achieve heating cost savings of up to 30% in a detached house.
The Insulated Brick Façade Panels makes it possible to face the walls of old, prefabricated and new buildings cleanly, easily and economically with the additional effect of thermal-insulation.

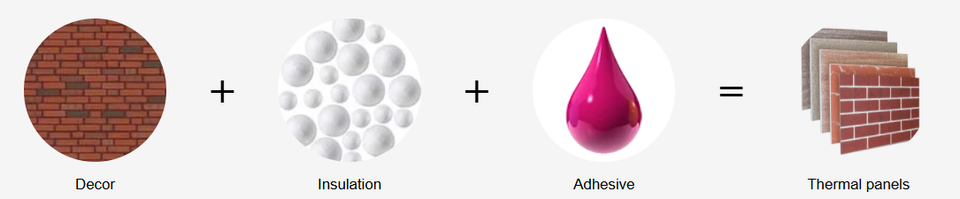

Insulated Brick Façade Panels composition

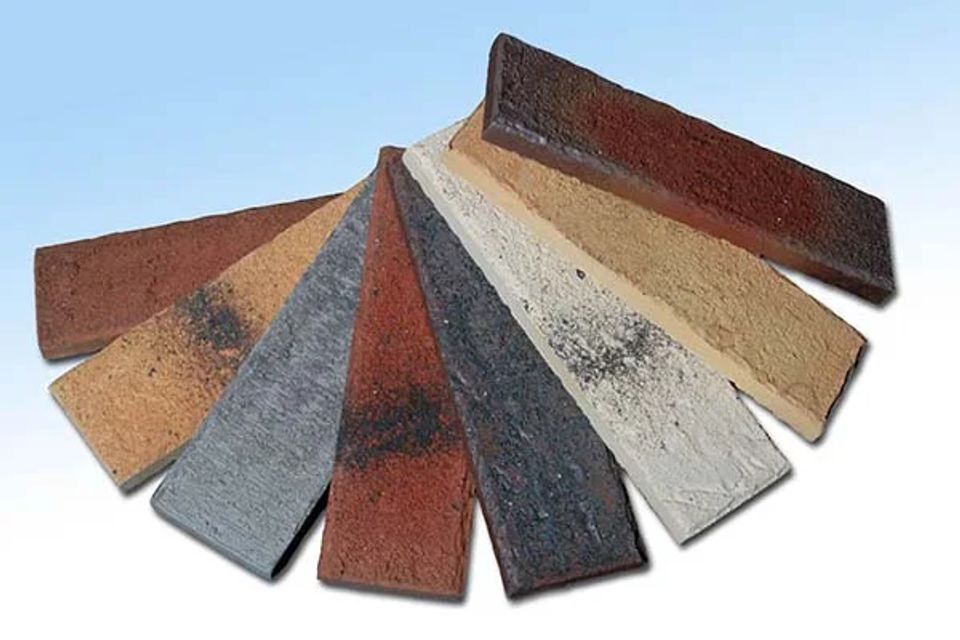

1. Clinker tiles
Clinker tiles are manufactured of a special kind of clay. During the manufacturing process, the tiles are heated to about 2000°F until fully formed. Unlike, ceramic tiles and facade plaster, clinker tiles have the multiple advantages of durability and reliability.
The water absorption of clinker tiles is in the range of 3% to 5% of the volume weight. While ceramic tiles have this figure up to 15%. Clinker has a high level of frost resistance - this is the number of freeze-thaw cycles in a saturated state, which the tile withstands before it begins to break.
2. Insulation:
Extruded Polystyrene (XPS), Expanded Polystyrene (EPS) - often called Styrofoam, or polyurethane (PUR)
All of these materials provide excellent compressive strength, moisture resistance, and thermal protection. Ideally suited for residential applications. These types of insulation are a cost-effective, easy-to- install solution that achieves R-values above building regulations. The thickness of the thermal insulation layer is from 1 ½ in to 6 in. Depending on the panel thickness, the R-value is up to 23.
Clinker tiles are manufactured of a special kind of clay. During the manufacturing process, the tiles are heated to about 2000°F until fully formed. Unlike, ceramic tiles and facade plaster, clinker tiles have the multiple advantages of durability and reliability.
The water absorption of clinker tiles is in the range of 3% to 5% of the volume weight. While ceramic tiles have this figure up to 15%. Clinker has a high level of frost resistance - this is the number of freeze-thaw cycles in a saturated state, which the tile withstands before it begins to break.
2. Insulation:
Extruded Polystyrene (XPS), Expanded Polystyrene (EPS) - often called Styrofoam, or polyurethane (PUR)
All of these materials provide excellent compressive strength, moisture resistance, and thermal protection. Ideally suited for residential applications. These types of insulation are a cost-effective, easy-to- install solution that achieves R-values above building regulations. The thickness of the thermal insulation layer is from 1 ½ in to 6 in. Depending on the panel thickness, the R-value is up to 23.
Clinker Facades Make a Long Term Investment
This is why clinker tiles are products made by proven and recognized manufacturers. Use of clay – a natural product and constant optimization of production make our clinker thermopanels an advanced and eco-friendly building material.
Insulated brick facade panels is highly resistant to frost and humidity. It makes clinker facades practical, durable and eye-catching. The variety of formats and colors allows every customer to find clinker adapted to the surrounding architecture and their own preferences.
Insulated brick facade panels is highly resistant to frost and humidity. It makes clinker facades practical, durable and eye-catching. The variety of formats and colors allows every customer to find clinker adapted to the surrounding architecture and their own preferences.

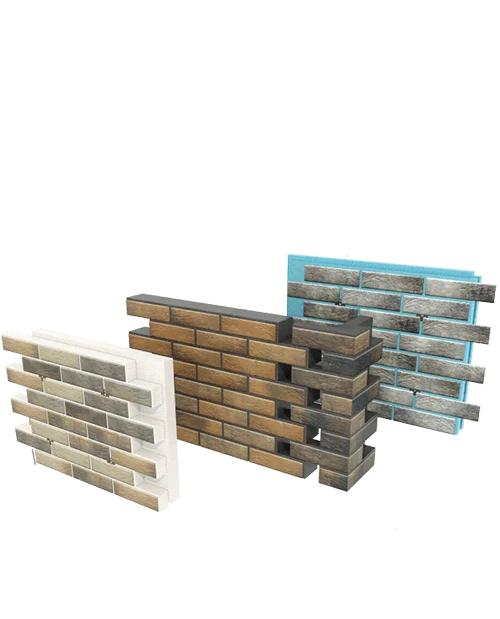

Insulated brick facade panels
Prefabricated facade elements made of clinker bricks or flexible clinker permanently embedded (in the production process) in a rigid non-flammable polyurethane foam (PU), expanded polystyrene (EPS), extruded polystyrene (XPS) foam panels, mineral wool and graphite foam (Neopor).
The system provides effective thermal insulation and offers reliable and aesthetically pleasing clinker facade laid in a wall texture. It is applied on flat and vertical walls, both on new and renovated buildings. Height of buildings up to 18 storeys.
The system provides effective thermal insulation and offers reliable and aesthetically pleasing clinker facade laid in a wall texture. It is applied on flat and vertical walls, both on new and renovated buildings. Height of buildings up to 18 storeys.

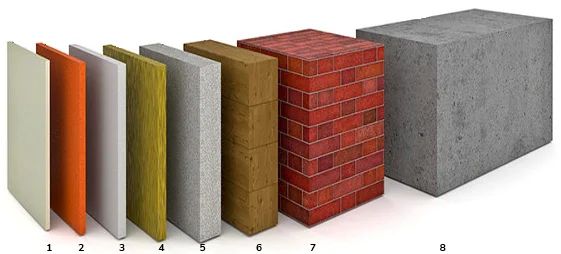

Comparison of Different Types of Insulation
Thickness that prevent heat loss equally:
1. Polyurethane foam - 3\4 in
2. Extrunded polystyrene - 1 1/4 in
3. Expended polystyrene - 1 1/2 in
4. Fiberglass - 1 3/4 in
5. Polystyrene concrete brick - 4 3/4 in
6. Wood beam - 7 in
7. Red brick - 22 in
8. Concrete brick - 51 in
1. Polyurethane foam - 3\4 in
2. Extrunded polystyrene - 1 1/4 in
3. Expended polystyrene - 1 1/2 in
4. Fiberglass - 1 3/4 in
5. Polystyrene concrete brick - 4 3/4 in
6. Wood beam - 7 in
7. Red brick - 22 in
8. Concrete brick - 51 in

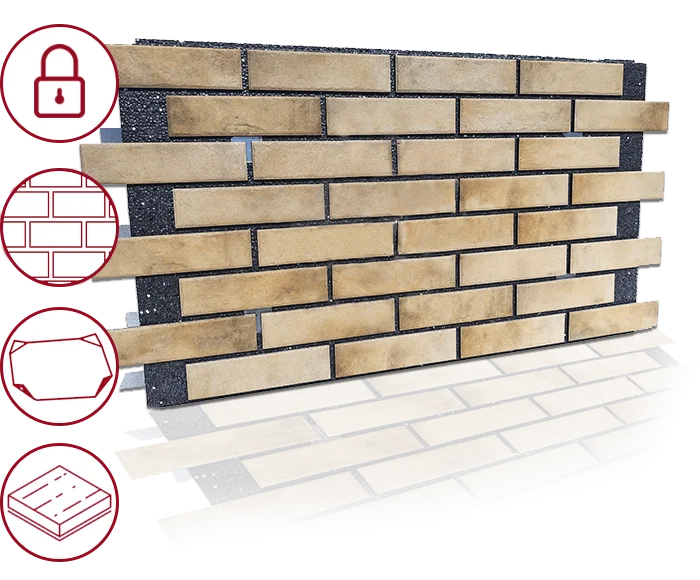

A Unique Time-Proved Technology
- QUARTER-TURN LOCK
along the perimeter of the panel
- PROTECTIVE AND DECORATIVE LAYER
Manufacturer: Manufactured at the world's best havods
- EMBEDDED DETAILS
Embedded detail made of zinc-coated steel or plastic
- THERMAL INSULATING LAYER
Thermal insulation layer EPS, XPS, PU
