EUROPEAN STYLE WINDOWS

Beauty and Efficiency

Aluminum Windows

Aluminum Windows

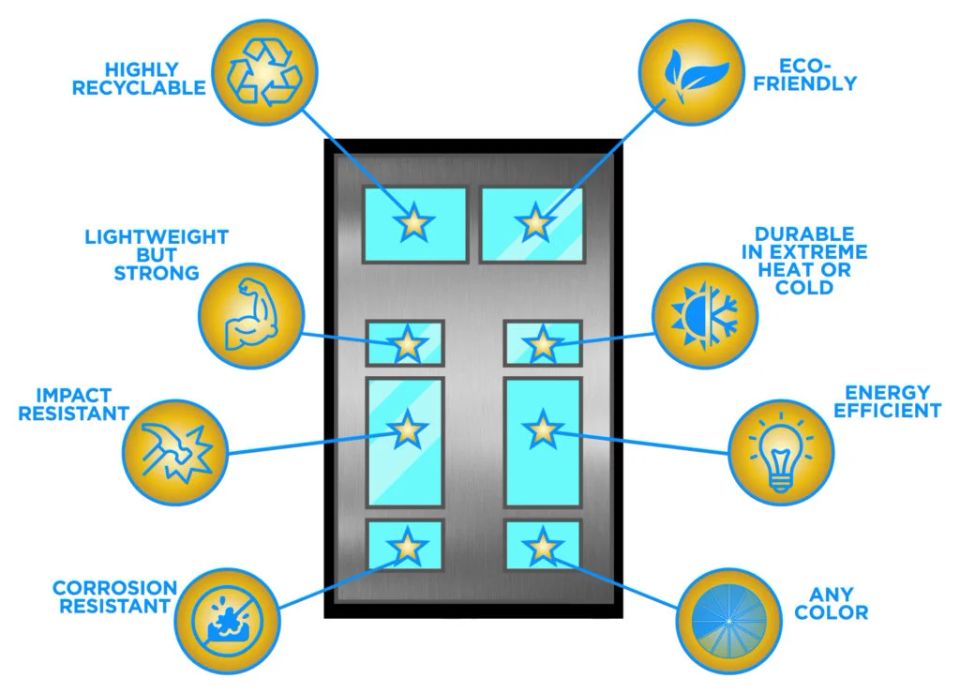

European aluminum windows have gained considerable popularity in all global markets due to their excellent quality and stylish aesthetics. To buy aluminum windows is to invest in reliability and comfort for the next 30-40 years. The precision engineering and attention to detail showcased in these windows have captivated the interest of architects and designers looking for sleek and modern solutions. Our Aluminum Windows epitomize a collection of exquisite, cutting-edge windows meticulously crafted by an esteemed European powerhouse in aluminum building systems. These extraordinary windows have gained a stellar reputation for their striking beauty, unwavering robustness, and exceptional energy efficiency. Constructed from resilient yet lightweight aluminum profiles, they bestow an array of advantages upon both residential and commercial structures, seamlessly combining form and function.

Design Flexibility

Aluminum is available in many durable finishes and a host of different color options. It can also be anodized or powder-coated for extra protection from natural elements. As a result, you likely won’t ever need to repaint or reseal any of your aluminum windows and doors. Moreover, aluminum offers a more narrow profile for bigger views with less bulky material surrounding it.

Durability

Aluminum has the durability and weatherproof properties to withstand a wide range of harsh environmental conditions. Unlike other window materials, it will not swell, warp, crack, or split over time. It is tremendously stable during even the most extreme—both hot and cold—weather temperatures.

Energy Efficiency

High performance aluminum windows have the capabilities to exceed rigid energy efficiency standards. They are engineered with a dual glazing technique on (low-e) glass and a thermal break in the framing construction.

Sustainability

Manufacturing aluminum window involves a very “green” process. It does not require the cutting down of forests or farm-raised trees in the manufacturing process. This material is also one of the most recycled products on our planet.

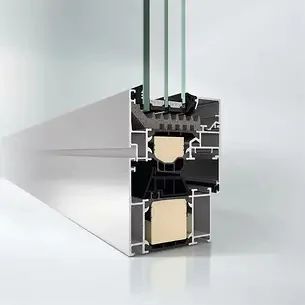

AWS 65

This thermally insulated window system offers an extensive range of solutions for the 65 mm basic depth to meet a variety of building envelope requirements. It is based on the functional, energy-efficiency and design properties of the aluminum construction: perfectly tailored components combine benefits such as good thermal insulation, narrow face widths and concealed, standard manual or electromechanical fittings for inward and outward-opening windows. An additional benefit for architects and specifiers is the wide range of opening types such as side-hung and turn/tilt vents, bottom-hung top-lights or barrier-free window doors.

Min. face width 91 mm
Uf value of frame (2) 1.9 W/(m2K)
Max. glass/panel thickness 55 mm
Max. vent width 1700 mm
Max. vent height 2500 mm
Max. sound reduction index Rwp 47 aB(A)
Air permeability Class 4
Watertightness Class 9A
Burglar resistance Up to RC3
Wind load resistance Class C5 / B5
CE marking Yes

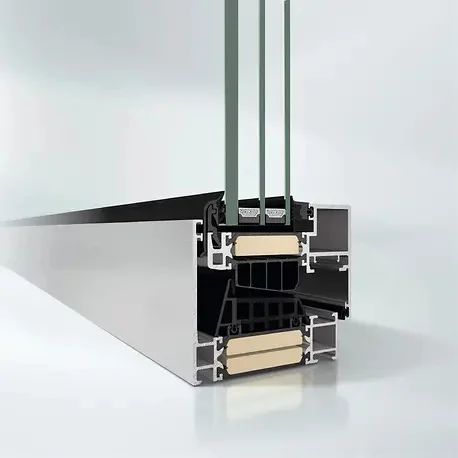

AWS 75.SI

The AWS 75.SI+ (Super Insulation) standard window system for the 75 mm forms the basis for a range of applications in energy-efficient building envelopes. An additional benefit for architects and specifiers is the wide range of opening types such as tilt/slide vents, bottom-hung top-lights or horizontal and vertical pivot vents.

Min. face width 91 mm
Uf value of frame (2) 0.92 W/(m2K)
Max. glass/panel thickness 61 mm
Max. vent width 1700 mm
Max. vent height 2500 mm
Max. sound reduction index Rwp 48 aB(A)
Air permeability Class 4
Watertightness Class 9A
Burglar resistance Up to RC3
Wind load resistance Class C5 / B5
CE marking Yes

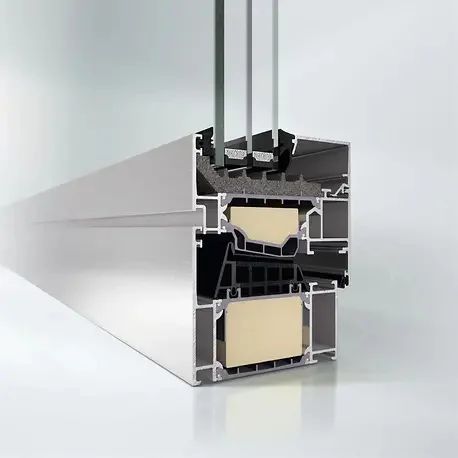

AWS 90.SI+Green

The AWS 90.SI+Green window systems with a basic depth of 90 mm combine the benefits of aluminum with maximum thermal insulation for design-orientated, sustainable architecture. The AWS 90 BS.SI+ Green combines the benefits of aluminum with maximum thermal insulation for design-oriented, sustainable architecture. AWS 90.SI+ Green is a highly thermally insulated aluminum window to passive house standard with parts made from renewable raw materials.

Min. face width 99 mm
Uf value of frame (2) 0.7 W/(m2-K)
Max. glass/panel thickness 68 mm
Max. vent width 1700 mm
Max. vent height 2500 mm
Max. sound reduction index Rwp 47 aB(A)
Air permeability Class 4
Watertightness Class 9A
Burglar resistance Up to RC3
Wind load resistance Class C5 / B5
CE marking Yes

AWS 90 BS.SI+

Optimal thermal insulation combined with the advantages of a slim aluminum window structure without visible contours of sashes – AWS 90 BS.SI+ (Block System Super Insulation) meets the highest architectural standards with maximum transparency. The block window system is characterized by optimized features in terms of functionality, energy efficiency, and design.

Min. face width 77mm
Uf value of frame (2) 0.96 W/(m2K)
Max. glass/panel thickness 58 mm
Max. vent width 1700 mm
Max. vent height 2500 mm
Max. sound reduction index Rwp 49 aB(A)
Air permeability Class 4
Watertightness Class 9A
Burglar resistance Up to RC3
Wind load resistance Class C5 / B5
CE marking Yes
